Interfaces | Network | Music Sources |
DC input: -24V-4.16A | Wireless connection: - IEEE 802.11 b/g/n 2.4G - Bluetooth 5.0 SBC/AAC | Online streaming services: Spotify/Amazon Music/Tidal/Deezer Qobuz/Internet Radio/iheartRadio Napster, more coming in the near future |
Analog audio input: -RCA x1 for analog input(1.2Vrms) | Wired connection : - Ethernet RJ45 | Local storage: Music stored on the mobile device memory, NAS, USB pen drive |
Analog audio output -RCA x1 for analog output(1Vrms) | Audio Parameters | Aux input: RCA for analog input |
USB host: to connect USB pen drive | Music format: FLAC/MP3/AAC/AAC+ ALAC/APE/WAV | Speaker Power |
Ethernet RJ45: for wired LAN cable to connect internet | Audio decode: 24bit, 192kHz | 2×50-W into a 4-Ω BTL Load at 21 V 2×30-W into a 8-Ω BTL Load at 24 V |
LED indicators: to show the device status | Frequency response: 20Hz-20kHz | General |
Reset: short press to reset the WiFi, long press to restore factory setting | THD+N: 0.03%, @1kHz 50W+50W 24V-4Ω | Power input: 24V-4.16A DC input |

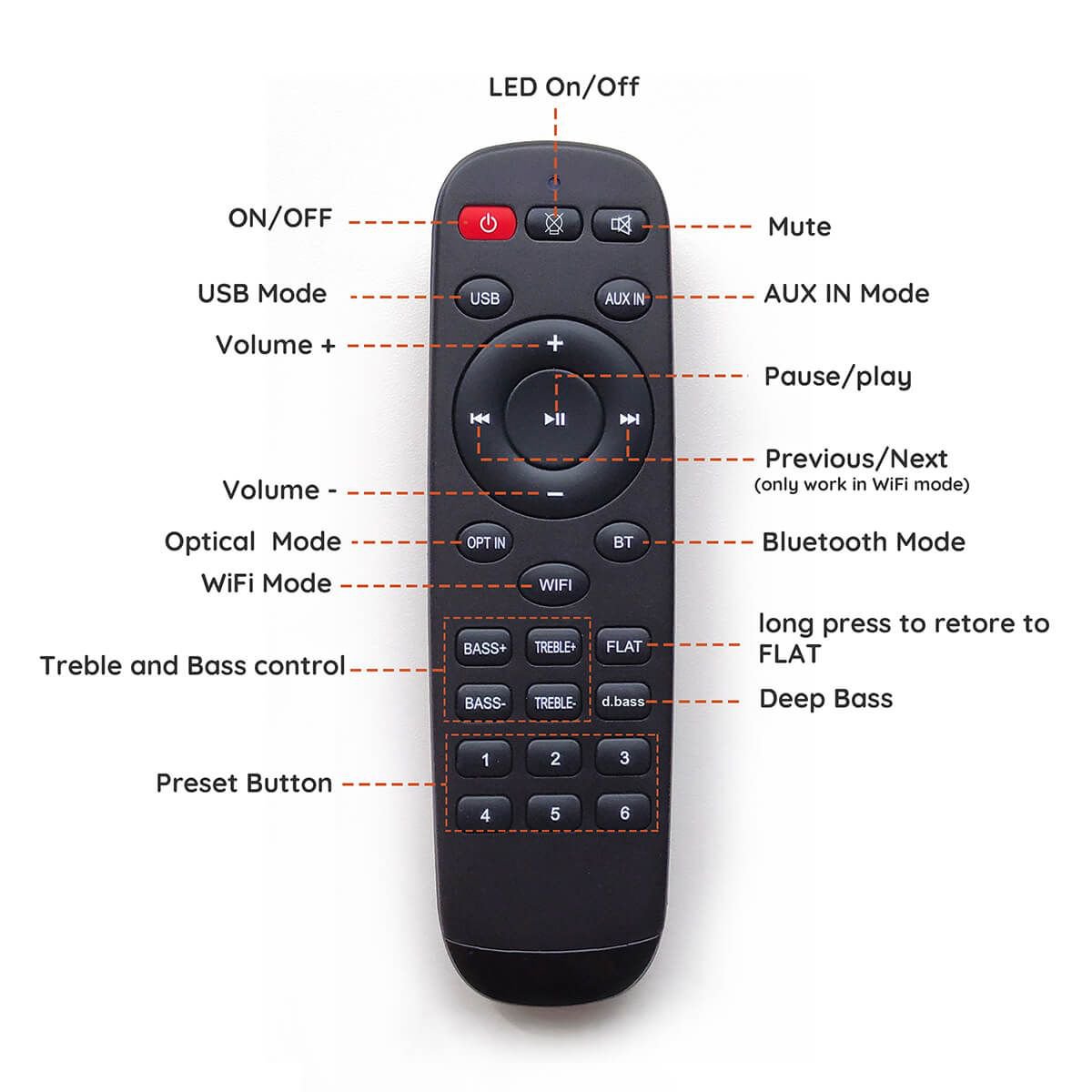

IR receiever: for remote control | Bluetooth distance: 10M | Dimensions: 114.7*107.5*37mm |
Antennas: for WiFi and Bluetooth | Speaker impedance: 4-8Ω | Weight: 0.5kg |
Streaming Protocols | Control Applications | Working temperature: 0~40℃ |
AirPlay, DLNA, UPnP, Spotify connect and Qplay | 4STREAM for iOS and Android based smart devices iTunes for MAC and Windows PC Foobar2000 and other compatible third-party apps | |
